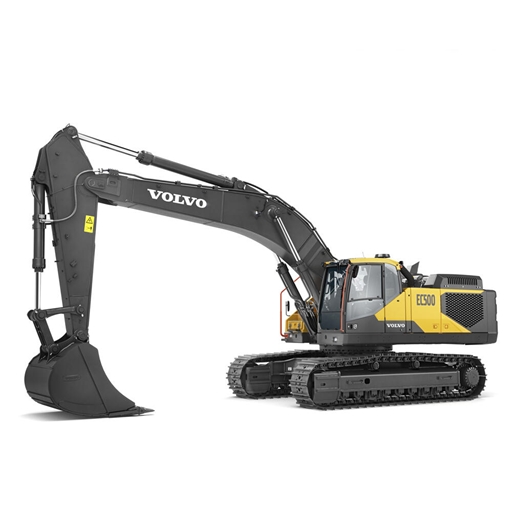

New generation machine

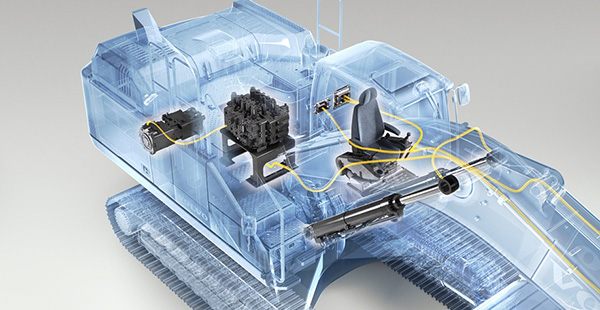

The new EC500, which meets the National IV standard, is equipped with the mature Volvo D13 engine. The EC500 adopts advanced technologies such as the new generation of electro-hydraulic control system, which improves fuel efficiency by about 5% and productivity by about 16%. Excellent machine stability is conducive to fully improving production performance, and the excellent driving environment and Volvo attachment series further improve productivity. Durable design, long component life and easy maintenance ensure longer uptime, allowing the machine to work longer at higher work intensity.
 Higher fuel efficiency Thanks to a series of efficiency-enhancing technologies, fuel efficiency is improved by about 5% compared to the previous generation. |
 Productivity has increased by about 16% with a larger bucket size, while the chassis has been lengthened by 100 mm to ensure excellent stability. |
 Quality comes from design Durable design, convenient maintenance, and comprehensive safety features make this high-quality machine. |
| Working weight | 52,100 - 52,200 Kg |
|---|---|
| Total power | 312 kW |
| Maximum power speed | 1,800 rpm |
| Bucket capacity | 1.55 - 3.5 m³ |
| Lifting capacity at chassis | 18,050 Kg |
| ...Lifting distance/height | 6 / 1.5 m |
| Maximum mining scope | 11,294 mm |
| Maximum digging depth | 7,036 mm |
| Bucket breakout force, SAE J1179 (normal) | 253 kN |
| Bucket digging force, SAE J1179 (boosted) | 275 kN |
| Arm digging force, SAE J1179 (normal) | 205 kN |
| Arm digging force, SAE J1179 (pressurized) | 224 kN |
| Total width | 3,340 mm |
| Tail turning radius | 3,880 mm |
